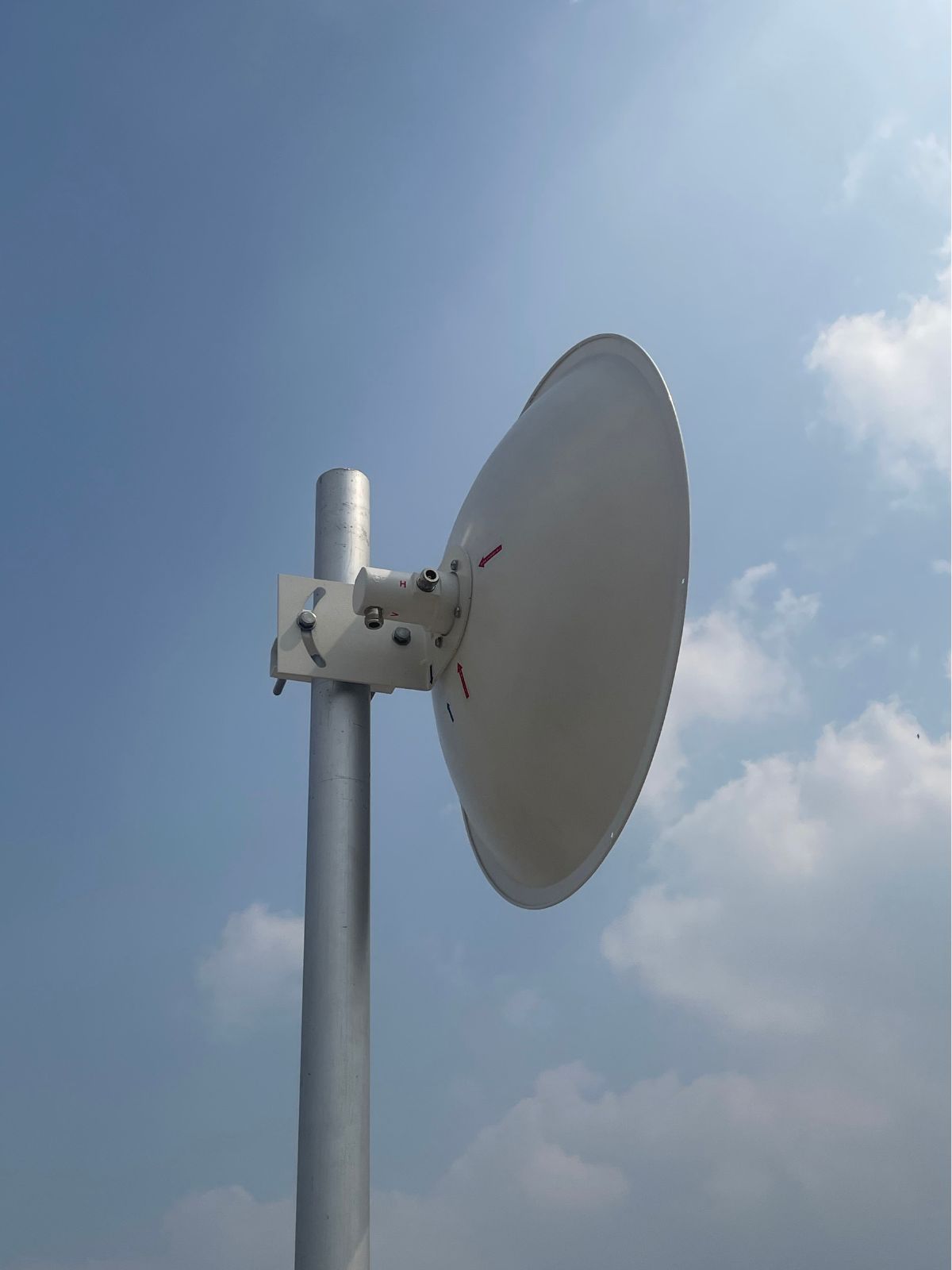

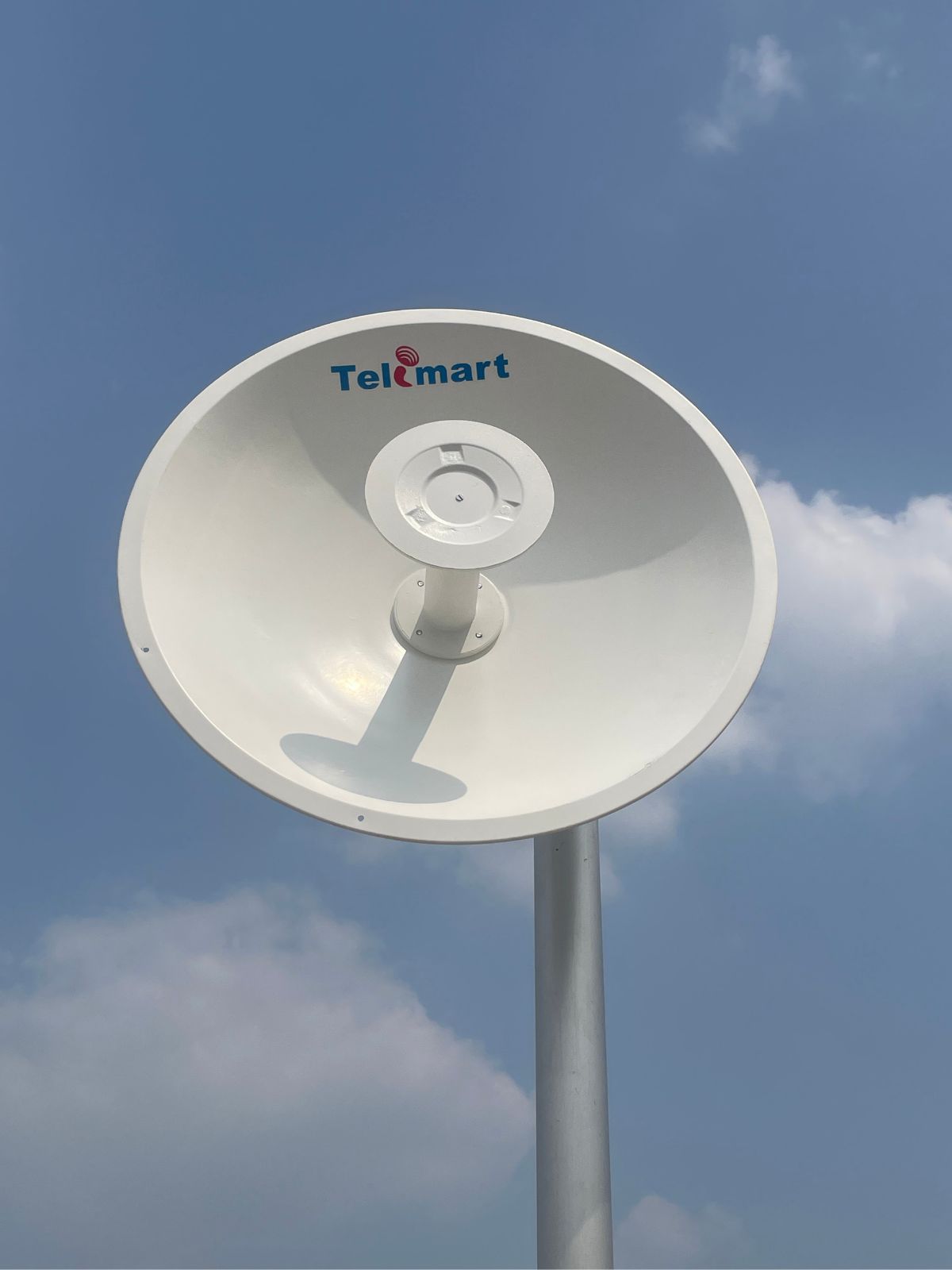

4.9 – 5.9 GHz, 23dBi 2×2 MIMO Dish Antenna FOR WIRELESS COMMUNICATIONS
| Frequency (MHz) | 4900 – 5900 | |
| Gain (dBi) | 23±0.5 | |
| VSWR (Max) | 1.5 : 1 | |
| H Plane BW (°) | 12±0.5 | |
| E Plane BW (°) | 12±0.5 | |
| Polarization | Linear V & H | |
| Port to Port Isolation (dB) | > 30 | |
| Max. Power Input (Watts) | 100 | |
| Impedance (Ω) | 50 | |
| Front to Back Ratio (dB) | >28 | |
| Cross Poln. (dB) | >25 | |
| Connector Termination | 2 × N(F) | |
Mechanical Parameters
| Dimension (mm) | Ø 380 ± 10 | |
| Reflector Material | Galvanized Steel | |
| Finish | White Powder coated | |
| Gross Weight (Kg) | 2±0.3 | |
| Mounting Bracket | Galvanized Steel | |
| Mounting Hardware | Stainless Steel | |
| Mounting Style | Pole | |
| Mounting Pole Diameter (inch) | 2 to 2.5 | |
| Mounting Adjustment | H Plane ± 180° V Plane ± 15° |
|
Environmental Parameters
| Temperature Range (°C) | (-) 40 to (+) 70 | |
| Wind Speed (km/hr) | 200 | |
| Humidity | 95% No Condensation | |
| Ingress Protection | IP 65 | |
